KASTO WBS 210 230 Hydr hacksaw metal saw reciprocating saw

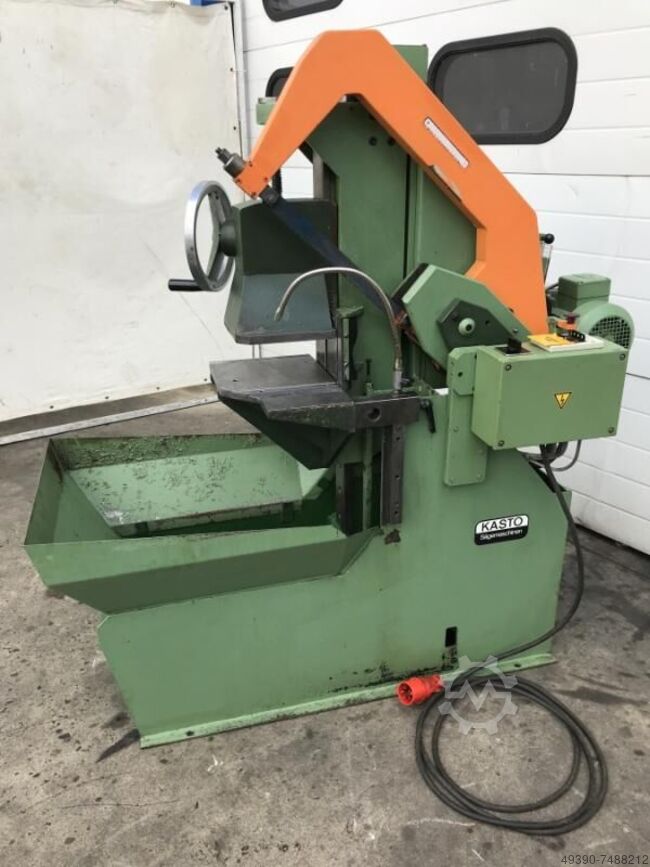

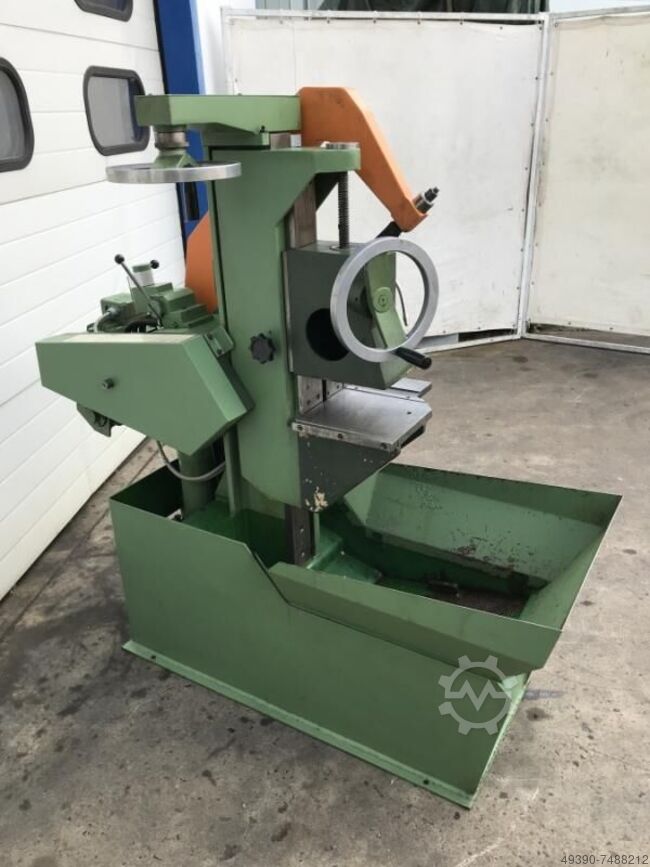

Hydr. hacksaw, metal saw, lifting saw KASTO type PSB WBS 210 / 230
Machine. No. 115 106 1212 / 72783 Year of construction 1986
sawing area – round Ø 250 mm
sawing area – square 225 x 225 mm
sawing range – rectangle 260 x 100 mm

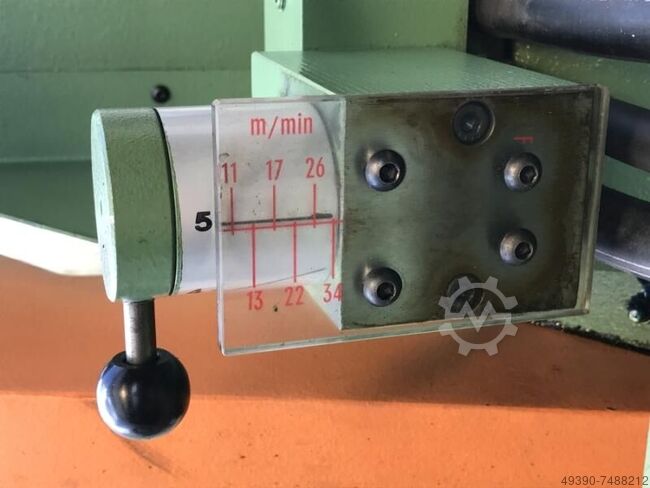

Cutting speed 11 -13 – 17 – 22 – 26 – 34 m/min.
saw blade length 400 mm
motor power 1,4 and 1,8 kW pole changeable
mains connection 380 Volt, 50 Hz
– only for 90° cuts, no miter adjustment

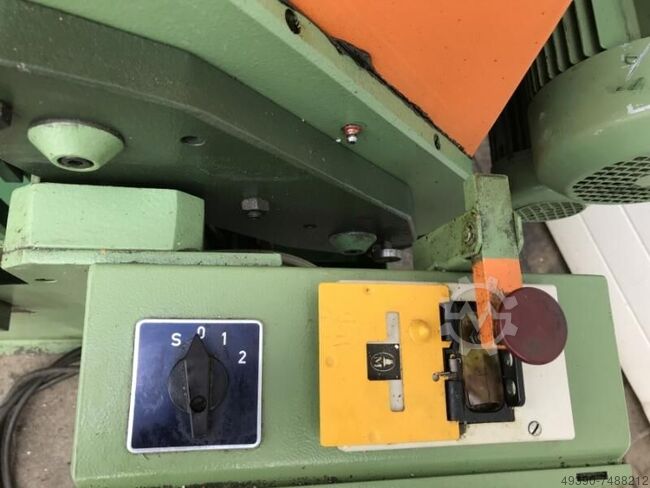

– Saw motor with 2 speeds and 3 V-belt stages
– Hydraulic saw bow feed
Dzsugu
– hydraulic cutting pressure adjustment via throttle valve
– rapid motion for saw bow lowering
– manual height adjustable material support table with mm scale via hand wheel
– manual material clamping
– coolant device in machine base
– operating instructions
space requirement L x W x H 1500 x 700 x 1550 mm
weight 590 kg
very good condition
