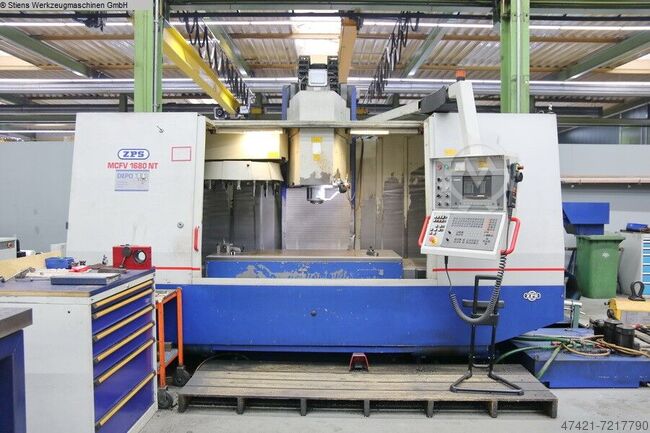

ZPS DEPO MCFV 1680 NT Machining Center Vertical

ZPS DEPO MCFV 1680 NT Machining Center Vertical

x-travel 1.650 mm
y-travel 810 mm
z-travel 810 mm
Cbuu7iknl8

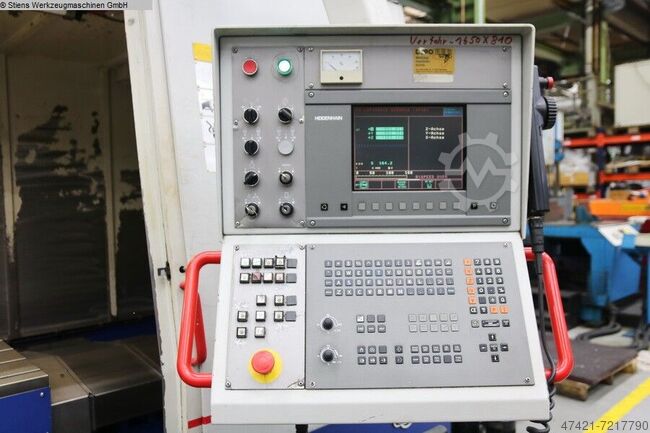

control TNC 426 Heidenhain
Main spindle:
turning speed range – main spindle 30 – 6.000 min/-1
power capacity – main spindel 20,5 / 17 kW
transmission ratio 2
max. Torque 650 Nm
tool taper SK 50
spindle bearing diameter 90 mm
distance spindle /table 110 – 920 mm
distance spindle center to column 990 mm
work height max. 1.000 mm

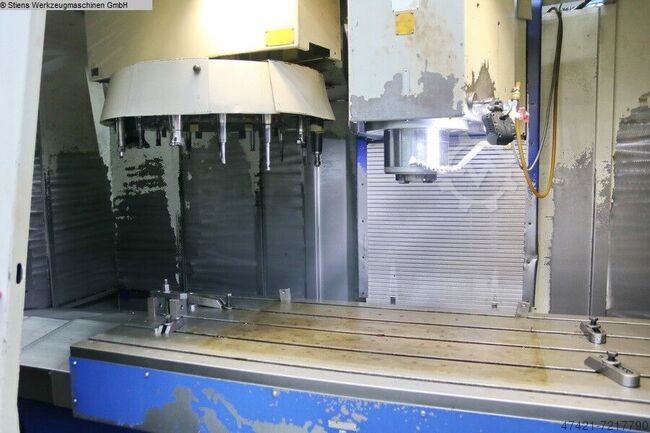

work table:
table surface area 1.800 x 780 mm
number of T-slots 5
T-slot – width 18 mm
T-slot – distance 150 mm
max. table load 1.750 kg
max. workpiece sizes 1.650 x 810 x 450 mm
feeds:
feed speeds 0 – 20.000 mm/min
rapid traverse 20 m/min

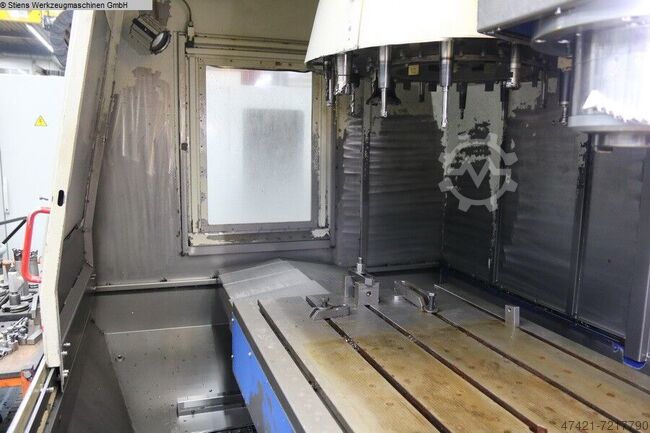

Tool-Presetter:
number of toolpositions 16 pos.
max. tool weight 12 kg
max. tool diameter 130 mm
max. tool-dia with free toolbox 220 mm
max. tool length 300 mm
change-time tool to tool max. 9 sec
total power requirement 51 kW
weight of the machine ca. 11,6 t
dimensions of the machine ca. 7,0 x 4,0 x 3,6 m

Documents
Chip conveyor
Coolantsystem
Automatic Tool Changer 16 pos.
Signal-Light
spindle oil cooler

CNC-Machining Center Vertical
ZPS DEPO – MCFV 1680 NT

– WITHOUT tools
