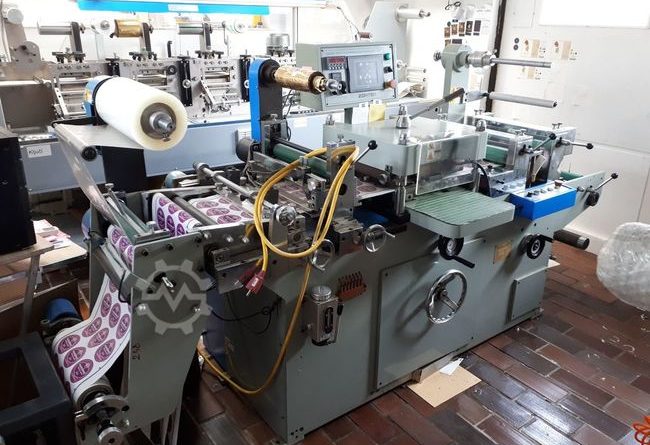

Zonten MQ 320 Label finishing and die cutting machine
High precision flatbed die cutting machine. The positioning and traction of the printing material is controlled by a servo-controlled system. Sideband guide is controlled by 2 sensors and the longitudinal by one of them. Lamination, die-cutting, waste disposal, roll-up and other processes can be completed in a single pass. It is suitable for various types of laser printers and is ideal as a die-cutting and molding complement for electronic labels and adhesive tapes.
Processing methods:
– embossing
– hot stamping 1c
– lamination
– slitting
Specifications:
– Cutting speed: 20-220cycle/min
– Max. unwind diameter: 500mm
Bi8eavhwfv
– Max. web width: 320mm
– Max. die cutting width: 300mm
– Max. die cutting length: 290mm
– Positioning accurancy: +0.1mm
– Total capacity: 2.7KW
– Power: 220V +5%
– Overall dimension (L×W×H): 2800x1100x1600mm
– Machine Weight: 1500kg
