rotopac rotomec

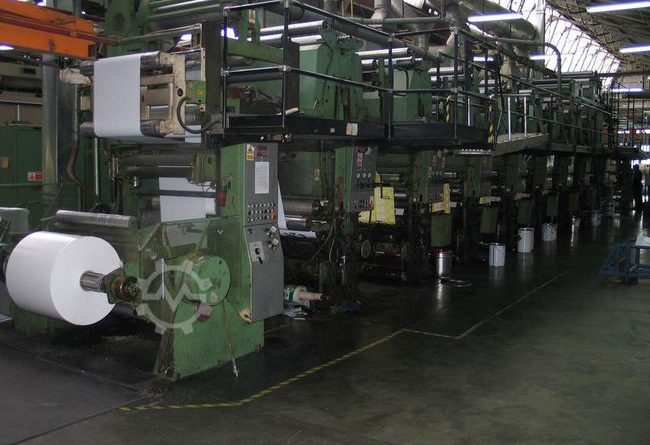

– ROTOPAC 2000 –
– Serial No. 73061 ( made 1988 ), Rotomec
– rotogravure 8 colour printing machine
– left to right handled
– web width 480 mm – 1020 mm
– Print width max, 1000 mm
– printing cylinder circumference range 350-820 mm
– max. reel diameter unwinder 800 mm
– max. reel diameter rewinder 800 mm
– inner core diameter unwinder 70,76
– inner core diameter rewinder 70,76 mm
– adaptors for inner core diameter 150 mm on unwinder
– Automatic splicing unwinder and rewinder
– max. mechanical speed 250 m/min
– min. operating speed 12,5 m/min
– Possibilites for reversing printing 7+1 colour
– Compressed air 7 bar
N08uz
– Preconditioning group
– 16 trolleys ( 8 in machine + 8 out of machine)
– Heating by gas burners ( heating source by gas )
– Electric main power 380 V/50 Hz
– 16 antistatic rubber rollers
– Installed power 250 KW
– Temperature of cool water 12 C-15 C
– Diameter of pipes for cool water is 2″
– Supply pressure of gas 100 mbar
– Diameter of supply pipes for gas 1″
– 4 burner station Maxon
Materials could be handled :
– Al-foil 8-60μ
– PE 30-100μ
– Poliester 12-36μ
– OPP 13-40μ
– Papir max. 100 g/m²
– Different substrates up to 150 gr/m²
