RAUSCH Gratomat MS150 2 760 Gear Deburring Machine

RAUSCH Gratomat MS150 2 760 Gear Deburring Machine

max. pitch circle 760 mm
stroke 110 mm
bis 150
3-jaw-chuck diameter 160 mm
total power requirement 21 kW
weight of the machine ca. 2,5 t
dimensions of the machine ca. 3,7 x 3,2 x 3,7 m

Multi-spindle deburring machine with rotary table 2 x 180 °; pitch 760mm; 2
Cgiwrshz

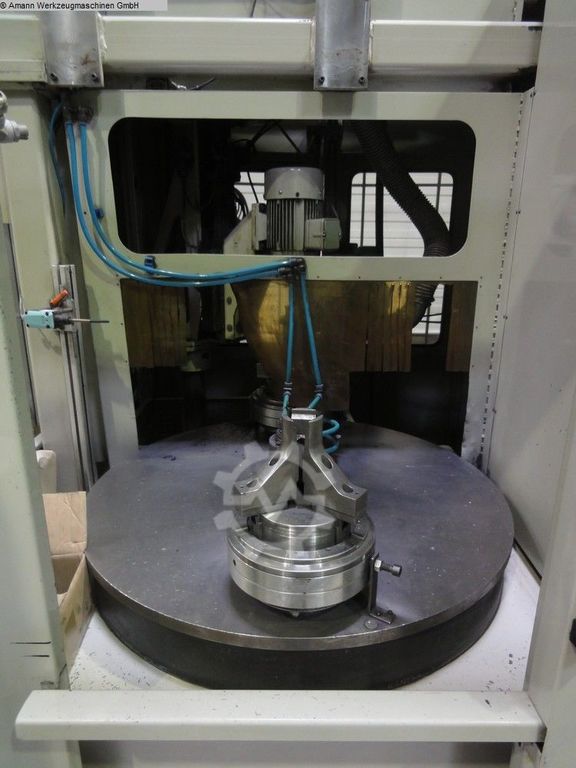

pneumatic chucks ROTA S 3-jaw Ø160mm
Loading and unloading station for the workpiece change manually or
automatically by loading portal.

Station 1:
1 piece special brushing processing unit, mounted on vertical structure
hydro. pneumatic feed slide (stroke = 0-110mm) with automatic. Brushing
adjustment,
Brushing Ø max. = 80 mm
Station 2:
1 piece brushing processing unit, mounting on horizontal mounted hydro.
pneumatic feed slide (stroke = 0-110mm) with automatic brushing adjustment,
Brushing Ø max. = 150mm

loader
extraction
