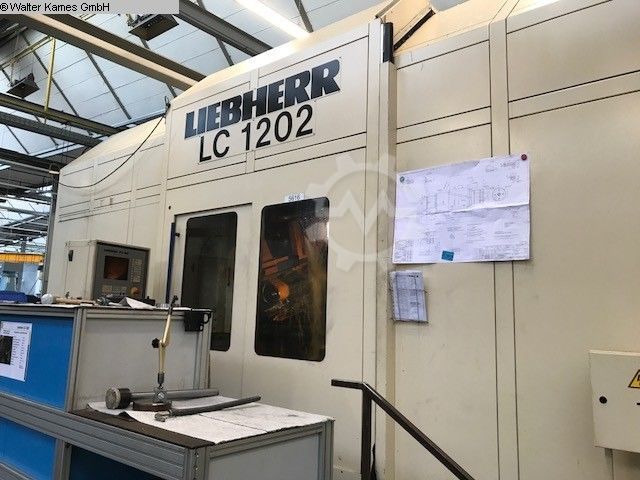

LIEBHERR LC 1202 Gear Hobbing Machine Vertical

LIEBHERR LC 1202 Gear Hobbing Machine Vertical

max. wheel diameter 1200 mm
gear width 1000 mm
max. module 22
min. module
Control Liebherr LH 90 GH
min. number of teeth 1
milling head -swivable +/- 45 °
milling cutter diameter 350 mm
cutter length max. 450 mm
spindle turning speed range 250 U/min
spindle motor 45 kW
milling spindle speeds 25 – 250 U/min
axial adjustment of the spindle slide 1200 mm
radial adjustment 900 mm
tailstock adjustment 800 mm
Chjzecxi
table diameter 1100 mm
table load 12,5 t
table hole 320 mm
total power requirement kW
weight of the machine ca. 35 t
dimensions of the machine ca. 8,7×5,1×5,7 m
