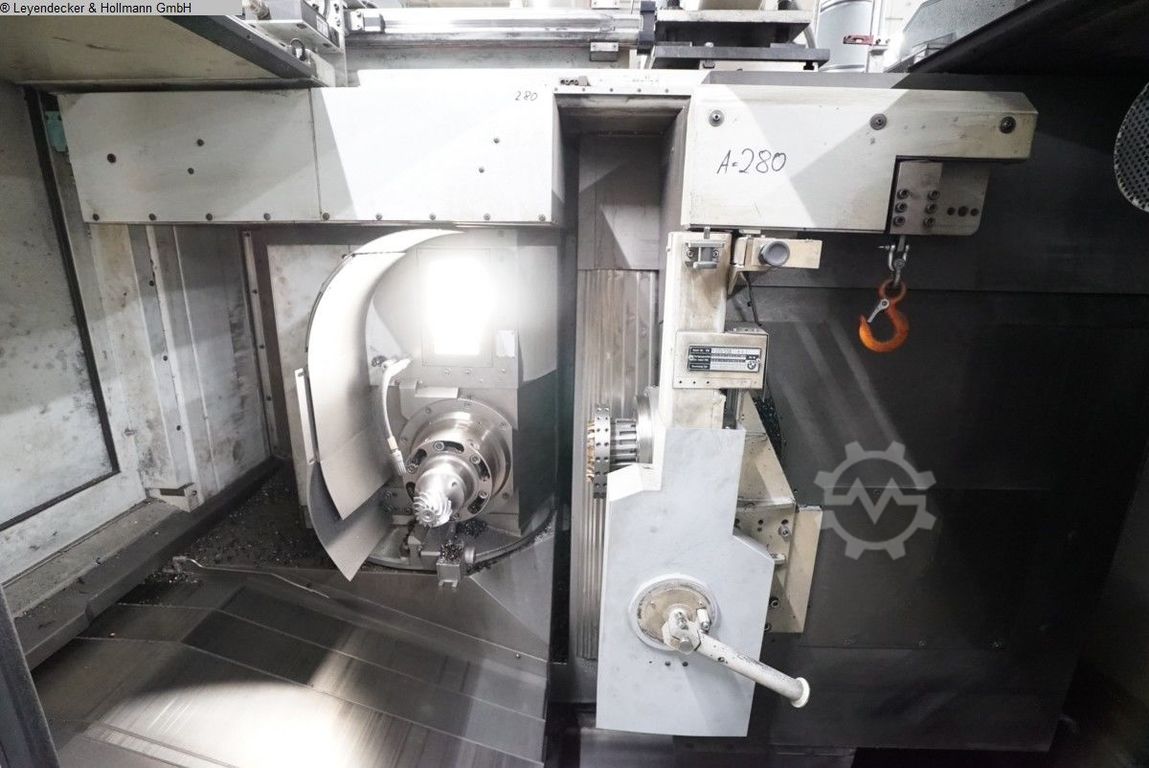

KLINGELNBERG C27 Spiral Bevel Gear Cutting Machine

KLINGELNBERG C27 Spiral Bevel Gear Cutting Machine

max. wheel diameter 270 mm
gear width 58 mm
max. module 6,5
min. module 1,5
Control Sinumerik 840D
tooth width 58 mm
spiral angle 0 / 60 °
max. number of teeth 180
min. number of teeth 6
transmission ratio max. 1:1
transmission ratio min. 1:10
blade cutter head diameter 39-105 mm
blade head turning speeds 1500 U/min
spindle speeds 1500 mm
total power requirement 40 kW
weight of the machine ca. 11,2 t
dimensions of the machine ca. 3,7 x 2,1 x 2,1 m

loading system Promot
deburring station
