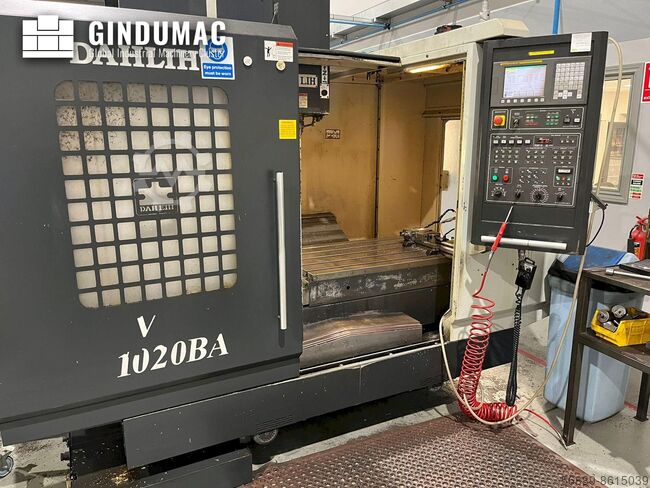

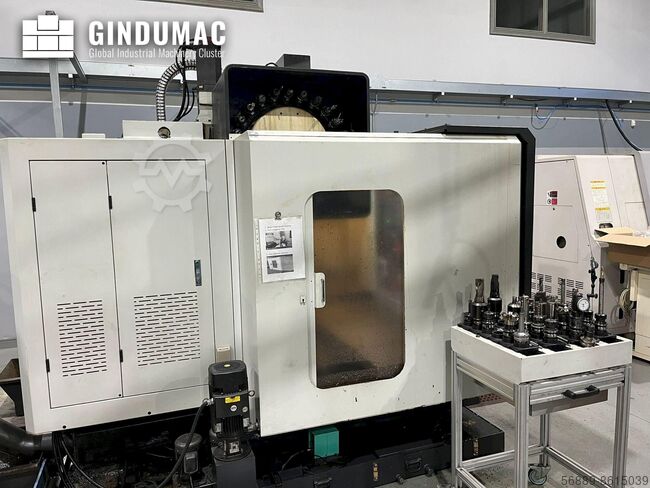

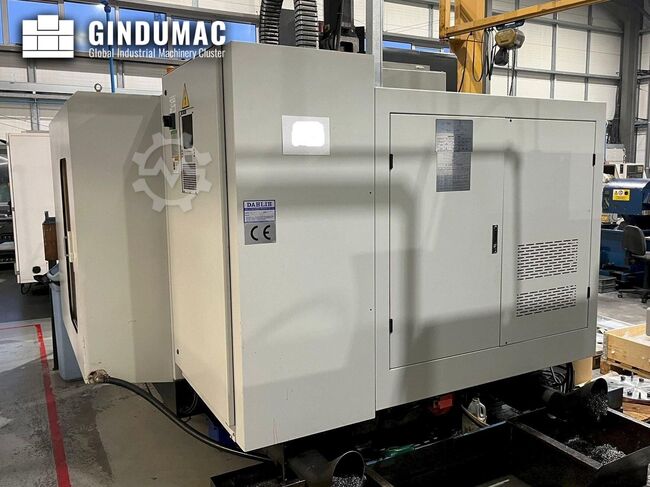

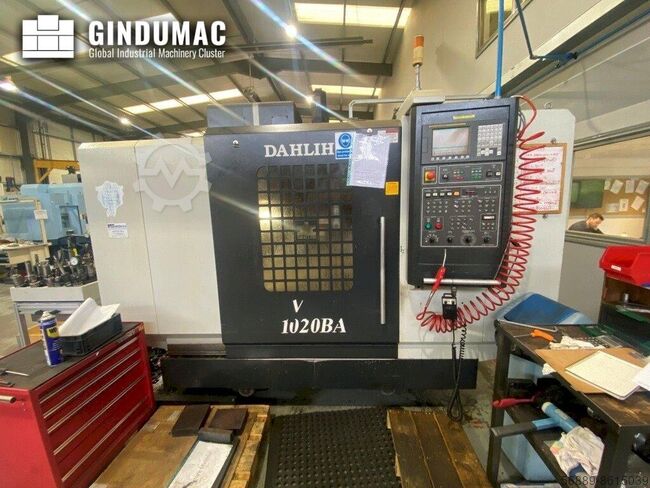

DAH LIH MCV 1020 BA Machining centers vertical
General Data
Measurements width 3260 mm
Measurements depth 3060 mm
Measurements height 2665 mm
Machine weight 6010 kg
Control Unit
Brand Fanuc
Model Oi-MC
CNC main language English
Main Drive
Number of spindles 1
Spindle speed range 8000
Movement
X-Axis Movement 1020 mm
Y-Axis Movement 550 mm
Z-Axis Movement 560 mm
A-Axis Movement 360 mm
Table
Outer length 1300 mm
Outer width 660 mm
Tslots size 5
Tools
Slots in storage 24
Max weight 7 kg
Max tool diameter 127 mm
Max tool length 300 mm
Type of tool holder BT 40
Media
Main electronic connection 380 V
Additional Equipment

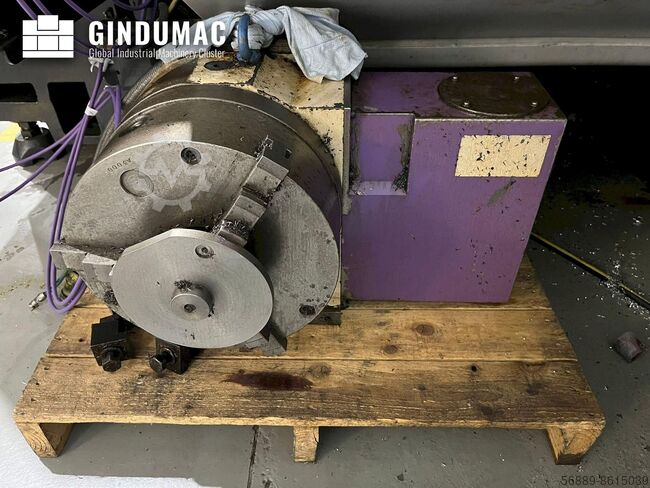

4th Axis with Chuck
This Dah Lih MCV 1020 BA Vertical Machining center was manufactured in the year 2007 in Taiwan. It is equipped with a Fanuc Oi-MC control unit and has 4 axis. The machine has a spindle speed of 8000 rpm, is in very good condition and well maintained.
Coljz8qhp9
Application Types
Milling
