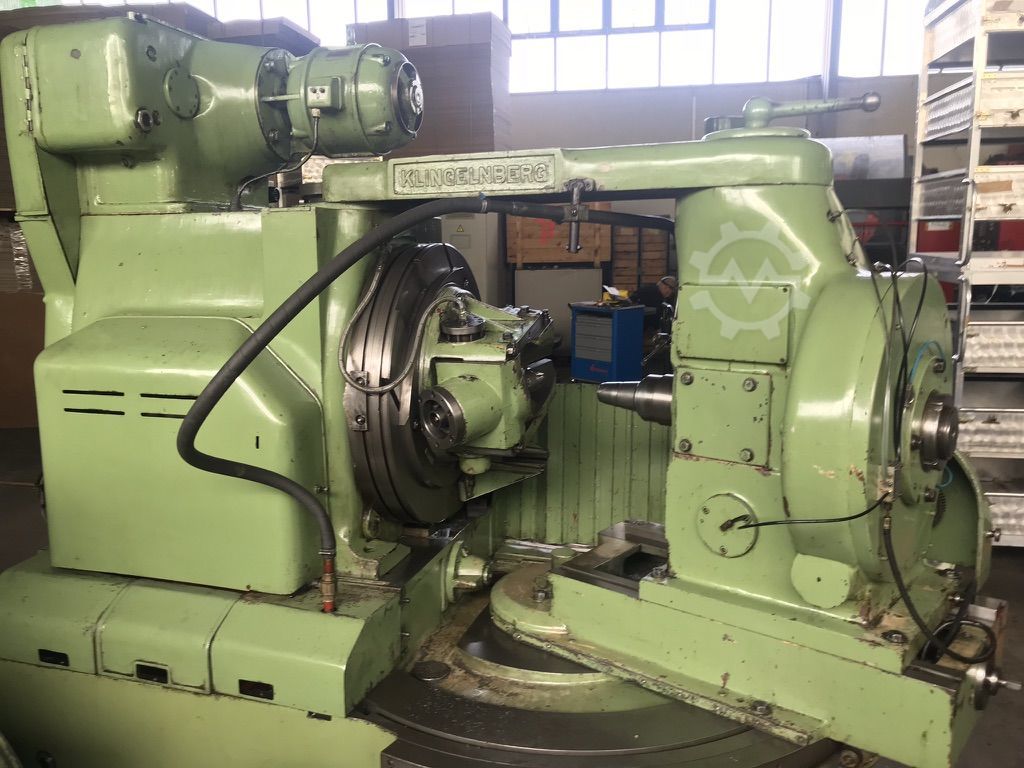

KLINGELNBERG AFK 203 Spiral Bevel Gear Cutting Machine
Category Spiral Bevel Gear Cutting Machine
Make KLINGELNBERG
Type AFK 203
New in 1970
Control
Location ab Werksstandort,unter Strom
Origin Germany
Delivery time immediately
Freight basis ex foundation “is as is, where
Price
max. wheel diameter 540 mm
max. cutting bevel gear width 70 mm
max. module 8
pinion diameter – max. 390 mm
cone distance min./max. 65 / 275 mm
no. of teeth to be hobbed 4 -130
milling slide swivelling 360 °
milling head speed 55 – 240 U/min
workpiece swivable +/- 90 °
workpiece turning speeds 55 – 240 U/min
total power requirement 7,8 kW
weight of the machine ca. 10 t
Bhikaozixs
dimensions of the machine ca. 2,1 x 3,0 x 2,0 m
Description
Machine in very good condition, suitable for the production of spiral bevel
gears.
